Silent 40 mm fan with FDB bearing
AABCOOLING Super Silent Fan 4 is a quiet fan measuring 40 x 40 x 10 mm. It runs at 4500 rpm ±10%. Airflow is 8.26 m³/h. The modern FDB (Fluid Dynamic Bearing) ensures smooth, quiet operation and a lifespan of 100,000 h.
Key features

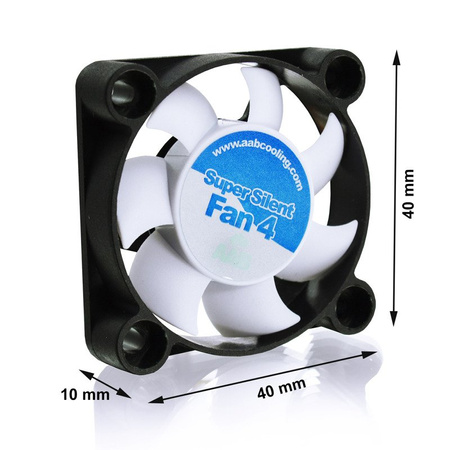

- Solid construction – 40 x 40 x 10 mm
- Modern IC motor
- Cable in black sleeving
- Quiet FDB bearing
- Airflow 8.26 m³/h
- Mounting screws and anti-vibration pads included
- Lifespan 100,000 h
Applications
With dimensions of 40 x 40 x 10 mm, the fan fits where space is tight – for example to cool the motherboard chipset. It also works well in electronics housed in small enclosures, such as set-top boxes, tuners, amplifiers and power converters.
FDB bearing – quiet and durable
- No friction and a longer lifespan – ordinary sleeve bearings rub and heat up, which shortens their life.
- Vibrations are damped by the oil.
- Practically the only source of noise is the fan blades.
- Protection against oil leakage.
- Spiral oil distribution ensures even lubrication – the oil does not collect in one part of the bearing.
- The same bearing technology is used in hard drives.
Installation and connection
The fan is fixed with four screws, just like standard power supply fans, so it can quickly replace a noisy fan.

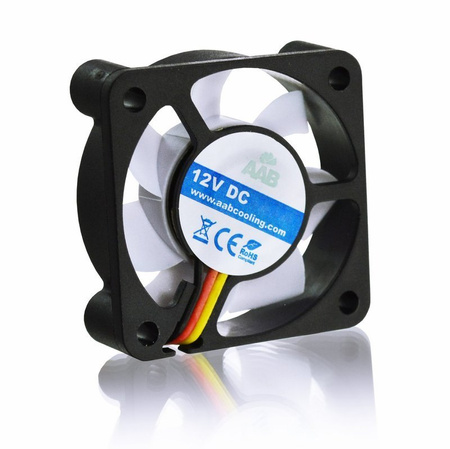

- Direct connection (e.g. inside a power supply) after removing the 3-pin plug: the black wire is ground (–), the red wire is power (+) and the yellow wire carries the speed signal. Without the yellow wire, the BIOS cannot read the speed. A product with a removed plug cannot be returned.
Technical specifications
- Dimensions: 40 x 40 x 10 mm
- Weight: 18 g
- Material: Plastic
- Power supply: 6.5–12 V DC / 0.02–0.05 A / 0.13–0.6 W
- Connector: 3-pin
- Speed: 4500 rpm ±10%
- Airflow: 8.26 m³/h
- Bearing: FDB (Fluid Dynamic Bearing)
- Mounting hole spacing: 32.5 x 32.5 mm
- Cable length: 30 cm
- Lifespan: 100,000 h
In the box
- 1 × AABCOOLING Super Silent Fan 4
- 4 × mounting screws
- 4 × anti-vibration pads
- Packaging
Brand
Entity responsible for this product in the EU
AAB Armanowski Spółka JawnaMore
ProducerAAB Armanowski Spółka JawnaAddress:
Polskiej Organizacji Wojskowej 14Postal code: 98-300City: WieluńCountry: PolandPhone number: +48438433303E-mail: info@aabcooling.com
Responsible entityAAB Armanowski Spółka JawnaAddress:
Polskiej Organizacji Wojskowej 14Postal code: 98-300City: WieluńCountry: PolandPhone number: +48438433303E-mail: info@aabcooling.com
Symbol
5907734796412
Producer code
5907734796412
Warranty
Overall dimensions
40 x 40 x 10 mm
Weight
18 g
Material
Plastic
Voltage
6,5V-12 VDC/ 0,02A-0,05A/ 0,13W-0,6W
Power Connector
3 Pin
Speed
4500 rpm ±10%
Airflow
8,26 m3/h
Noise level
14,9 dB
Bearings
FDB(Fluid Dynamic Bearing) - Hydraulic
Thermal resistance
0,29 C/W
Mounting hole spacing
32,5 x 32,5 mm
Cable length:
30cm
Liftime
100000 h
To download
Safety and product resources
24 months warranty
24 months warranty
Write your opinion
Your previous questions regarding this product
What size is the AABCOOLING Super Silent Fan 4?
The fan measures 40 x 40 x 10 mm and the mounting hole spacing is 32.5 x 32.5 mm.
What connector does the AABCOOLING Super Silent Fan 4 have?
The fan has a 3-pin connector. The cable length is 30 cm.
What bearing does the AABCOOLING Super Silent Fan 4 use?
The fan uses an FDB (Fluid Dynamic Bearing). Its service life is 100,000 h.
What airflow does the AABCOOLING Super Silent Fan 4 deliver?
The airflow is 8.26 m³/h and the speed is 4500 rpm ±10%.
What are the power specifications of the AABCOOLING Super Silent Fan 4?
Power supply: 6.5–12 V DC / 0.02–0.05 A / 0.13–0.6 W.
