  • The AABCOOLING Super Silent Fan 20 is a high performance 200 x 200 mm fan with up to 13 fan blades. The fan operates at a constant speed of 800 ± 10%. The air flow is as high as 193 m 3 / h and the noise generated by the propeller is approx. 14,9 dB
£9.09
incl. VAT / piece
Lowest price in 30 days before discount: / piece
Regular price: / piece
of
You can also buy using:
30 days for easy returns
Safe shopping
aab_cooling_super_silent_fan_20_dsc_4996

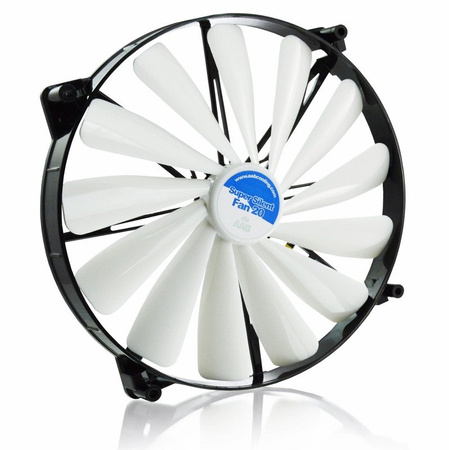

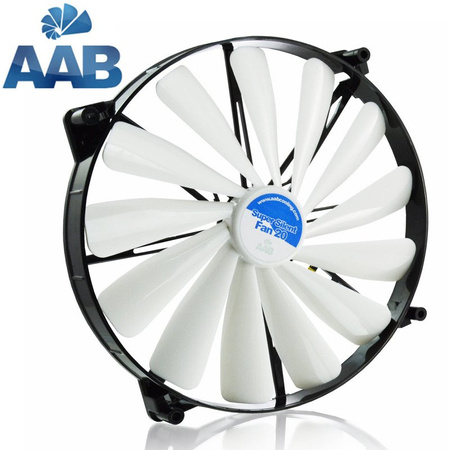

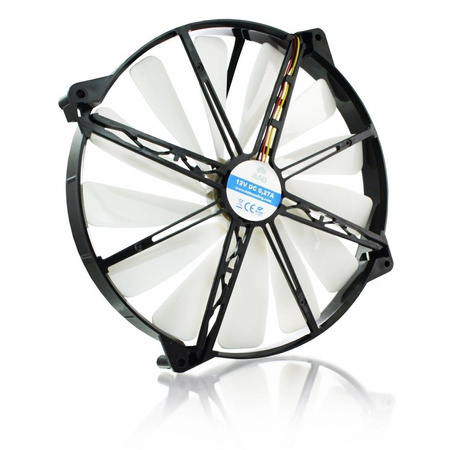

AABCOOLING Super Silent Fan 20 is a high performance 200 x 200 mm fan with up to 13 fan blades designed in a dynamic way for high performance. Solid, not pricey and lightweight 200 x 200 x 20 mm fan with 155 x 155 mm (side) spacing between mounting holes.
The fan operates at a constant speed of 800 ± 10%. The air flow is as high as 193 m 3 / h and the noise generated by the propeller is approx. 14,9 dB, which makes it a very quiet and efficient fan in its class available on the market. The mounting is very simple -, we install the fan with 4 screws in the chosen place.

- Solid construction, 200 x 200 x 20 mm

- State-of-the-art IC

- Cable in elegant black braid

- Modern, quiet FDB bearing

- Excellent work performance 193 m3/h

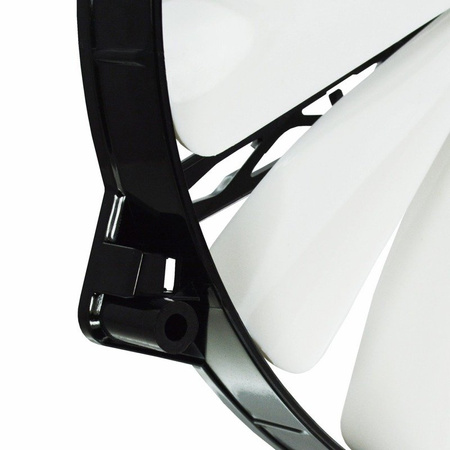

- Mounting and anti-vibration washers

- Extended lifespan: 100000h




Application:

The AABCOOLING Super Silent Fan 20 is mounted on 4 screws. Because of the custom dimensions, it requires individual adjustment of the PC side panel / casing. Possibility of mounting, for example, in a caravan to improve air circulation or small rooms / equipment requiring extra ventilation - more efficient cooling.

FDB bearings:

- no friction, prolonged lifespan
- leveling the vibrations that are damped by oil
- minimizing noise, which is generated only by fan blades.
- oil leakage protection
- spiral filling with oil for better lubrication, no possibility of oil accumulation in one part of the bearing
- used on hard drives, as much more efficient, quieter, to guarantee more efficient work
- Ordinary plain bearings slip during operation, rubbing against each other, they heat up, which significantly shortens their life span.

Mounting the fan in a casing or power supply:

- disconnecting the 3 pin plug and connecting the fan directly to the power supply (no return possible) - The black cable is ground, the red is responsible for +, yellow is the transmission of the speed, no connection unables the BIOS from reading speed.

Included:

- 1 x AABCOOLING Super Silent Fan 20
- 4 x mounting screws
- 4 x anti-vibration washers
- Packaging

Entity responsible for this product in the EU
AAB Armanowski Spółka JawnaMore
ProducerAAB Armanowski Spółka JawnaAddress: Polskiej Organizacji Wojskowej 14Postal code: 98-300City: WieluńCountry: PolandPhone number: +48438433303E-mail: info@aabcooling.com
Responsible entityAAB Armanowski Spółka JawnaAddress: Polskiej Organizacji Wojskowej 14Postal code: 98-300City: WieluńCountry: PolandPhone number: +48438433303E-mail: info@aabcoling.com
Symbol
5901812990372
Producer code
5901812990372
Total dimensions
200 x 200 x 20 mm
Weight
155 g
Material
Plastic
Power Supply
4V~12 VDC/ 0,09A~0,27A/ 0,36W~3,2W
Power Connector
3 Pin
Speed
800 rpm+/-10%
Airflow
193 m3/h
Noise
14,9 dB(A)
Bearings
FDB(Fluid Dynamic Bearing) - Hydraulic
Thermal resistance
0,29 C/W

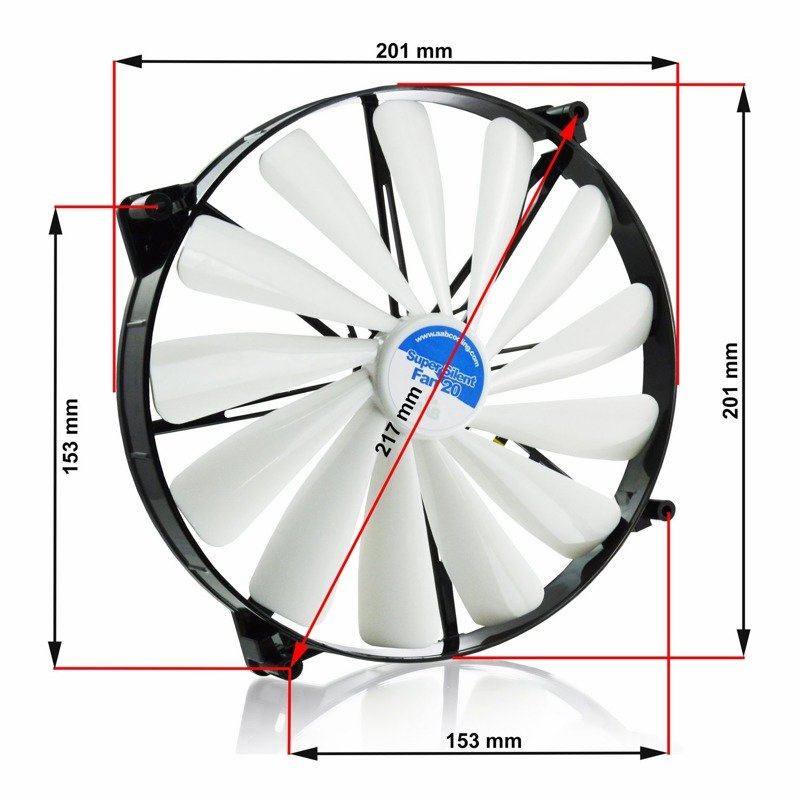

Mounting hole spacing
153 x 153 mm
Lifespan
100000 h
24 months warranty
24 months warranty
