Our bestseller

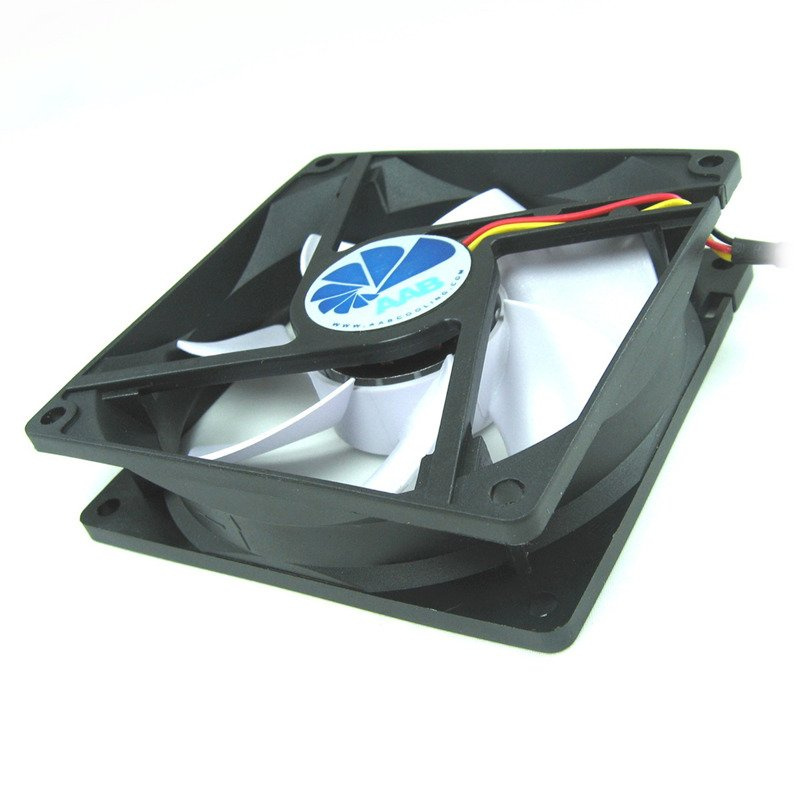

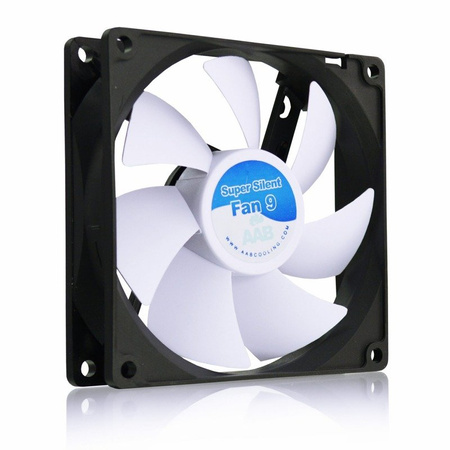

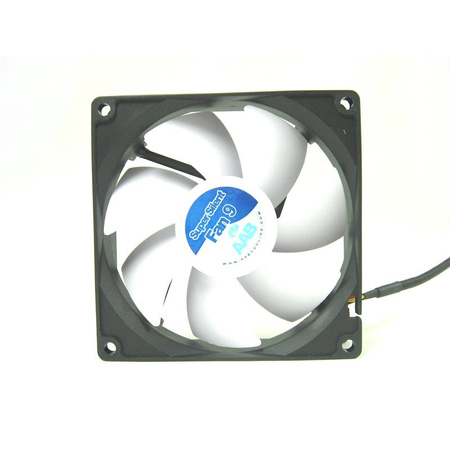

AABCOOLING Super Silent Fan 9

  • The AABCOOLING Super Silent Fan 9 is most of all a high quality workmanship, quiet operation and good price. The silicone washers for the screws that reduce the noise are also included in the set.
Thickness
£2.90
incl. VAT / piece
Lowest price in 30 days before discount: / piece
Regular price: / piece
of
You can also buy using:
30 days for easy returns
Safe shopping
DSC_4548o

AABCOOLING Super Silent Fan 9 is most of all a high quality workmanship, quiet operation and good price. The silicone washers for the screws that reduce the noise are also included in the set. The high working performance of the AAB fans is due to the advanced AFDB (Dynamic Fluid Dynamic Bearing) bearings. An additional advantage of this solution is extended, compared to sliding bearings, lifespan of 100000h.
The fan operates at a constant speed of 1600 ± 10%. The airflow is 58 m³ / h, and the noise generated by the propeller is 13,6 dB, which makes it a quiet and very efficient fan in its class available on the market. The mounting is very simple - we install the fan in the right place with 4 screws.

- Solid construction, 92 x 92 x 25 mm

- State-of-the-art IC

- Cable in elegant black braid

- Modern, quiet FDB bearing

- Excellent work performance 58 m3/h

- Mounting and anti-vibration washers

- Extended lifespan: 100000h




Excellent cooling:

Cooling of the case consists of warm air being thrown out. Mostly, the fan from the power supply is not capable of providing good cooling, despite its high speed and quite high noise levels. AABCOOLING Super Silent Fan 9 solves this problem.
Highly efficient and 92 x 92 x 25 mm dimensions allow the fan to be mounted on the heatsink for efficient cooling of the processor instead of the loud noise of other manufacturers.
Excellent replacement for loud fan on a CPU heat sink. Can be installed on the side panel of a PC or ATX computer power supply.

FDB bearings:

- no friction, prolonged lifespan
- leveling the vibrations that are damped by oil
- minimizing noise, which is generated only by fan blades
- oil leakage protection
- spiral filling with oil for better lubrication, no possibility of oil accumulation in one part of the bearing
- used on hard drives, as much more efficient, quieter, to guarantee more efficient work
- Ordinary plain bearings slip during operation, rubbing against each other, they heat up, which significantly shortens their life span

Mounting the fan in a casing or power supply:

The AABCOOLING Super Silent Fan 9 is mounted on 4 screws, attached just like the standard fans in the power supply, allows quick and easy replacement of the loud fan. Mounting methods in the power supply:
- connecting the fan on the motherboard and carrying the cable (30 cm) from the power supply by any small gap - possibility of reading the current number of fan speed in the BIOS
- disconnecting the 3 pin plug and connecting the fan directly to the power supply (no return possible) - The black cable is ground, the red is responsible for +, yellow is the transmission of the speed, no connection unables the BIOS from reading speed.

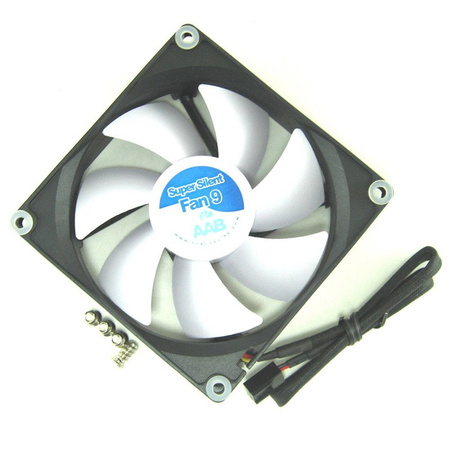

Included:

- 1 x AABCOOLING Super Silent Fan 9
- 4 x mounting screws
- 4 x anti-vibration washers
- Packaging

Entity responsible for this product in the EU
AAB Armanowski Spółka JawnaMore
ProducerAAB Armanowski Spółka JawnaAddress: Polskiej Organizacji Wojskowej 14Postal code: 98-300City: WieluńCountry: PolandPhone number: +48438433303E-mail: info@aabcooling.com
Responsible entityAAB Armanowski Spółka JawnaAddress: Polskiej Organizacji Wojskowej 14Postal code: 98-300City: WieluńCountry: PolandPhone number: +48438433303E-mail: info@aabcoling.com
Symbol
5907734796450
Producer code
5907734796450
Total dimensions
92 x 92 x 25 mm
Weight
73 g
Material
Plastic
Power Supply
5~12 VDC / 0,02A ~ 0,09A / 0,1W~1,08W
Power Connector
3 Pin
Speed
1600rpm ±10%
Airflow
58 m3/h
Noise
13,6 dB
Bearings
FDB(Fluid Dynamic Bearing) - Hydraulic
Thermal resistance
0,29 C/W
Mounting hole spacing
82 x 82 mm
Cable length:
30cm
Lifespan
100000 h
24 months warranty
