AABCOOLING Fan 8
AABCOOLING Fan 8

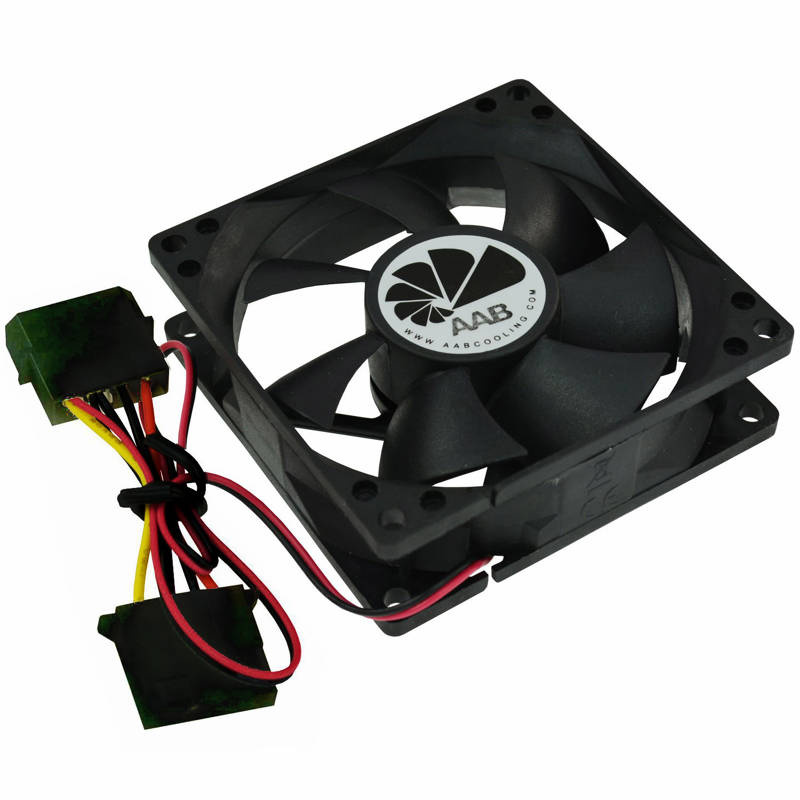

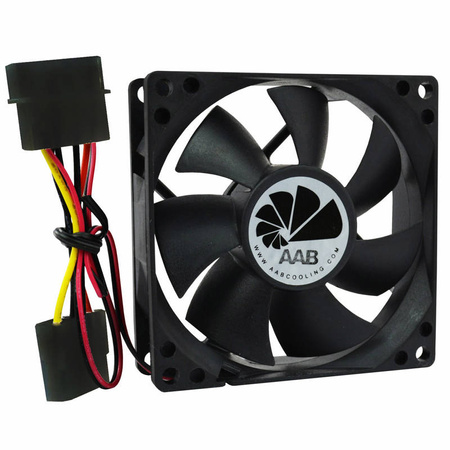

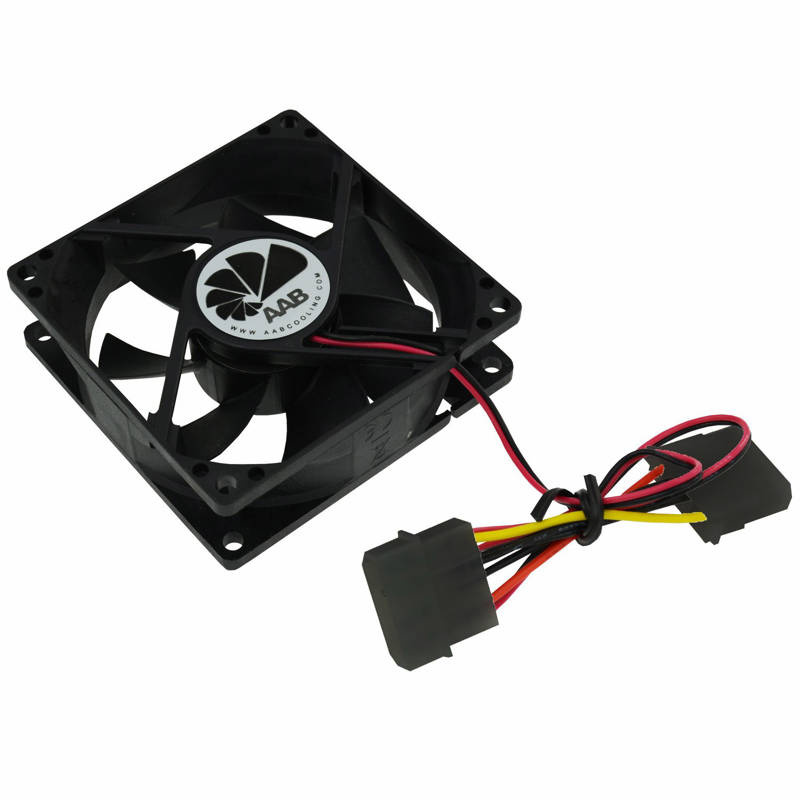

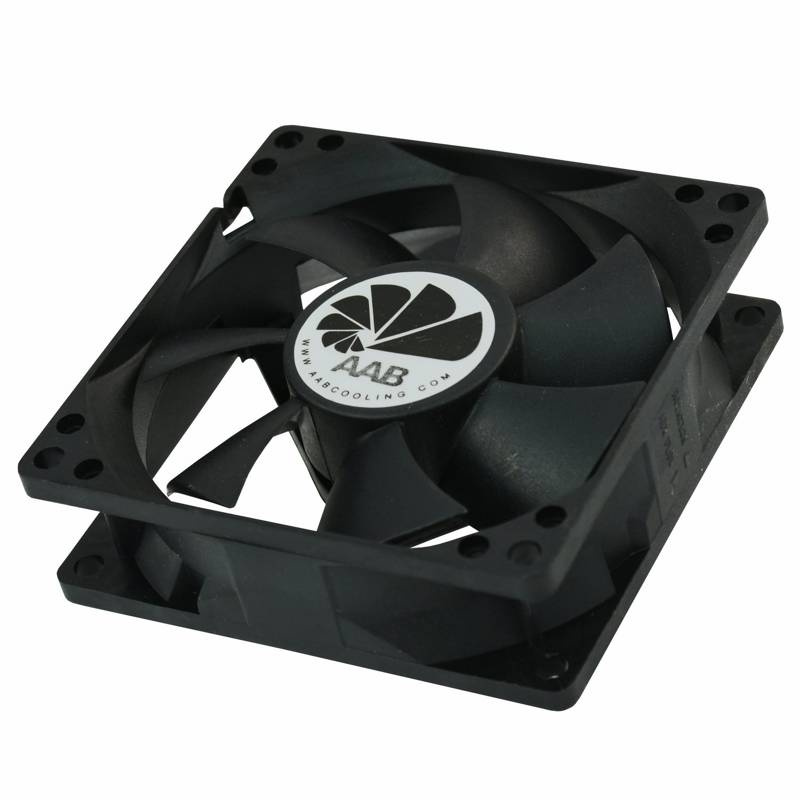

- AABCOOLING Fan 8 is an economical fan from AAB. The fan runs at a constant 2600 ± 10% rpm. The noise level generated by the blades and the bearing is 25 dB(A). Product warranty is 3 months.
AABCOOLING Fan 8 is an economical fan from AAB. The fan runs at a constant 2600 ± 10% rpm. The noise level generated by the blades and the bearing is 25 dB(A). Due to the installation of the cheapest and short-life plain bearings in this fan, this product warranty is only 3 months.
- Economy series
- Efficient
- 3 Pin Plug
- Sleeve Bearings
- Warranty 3 months
Typical applications:
Mounting the fan in the cover or power supply: The AABCOOLING Fan 8 is mounted on four screws, fixed to the standard fans in the power supply, allowing quick and easy replacement of the loud fan.
Installation methods in the power supply:
- Plug the fan plug into the 3Pin connector
- It is safer to solder the power cord to the power supply (voltage control from the power supply). Cut off the 3 pin plug and connect the fan directly to the power supply (no return possible).

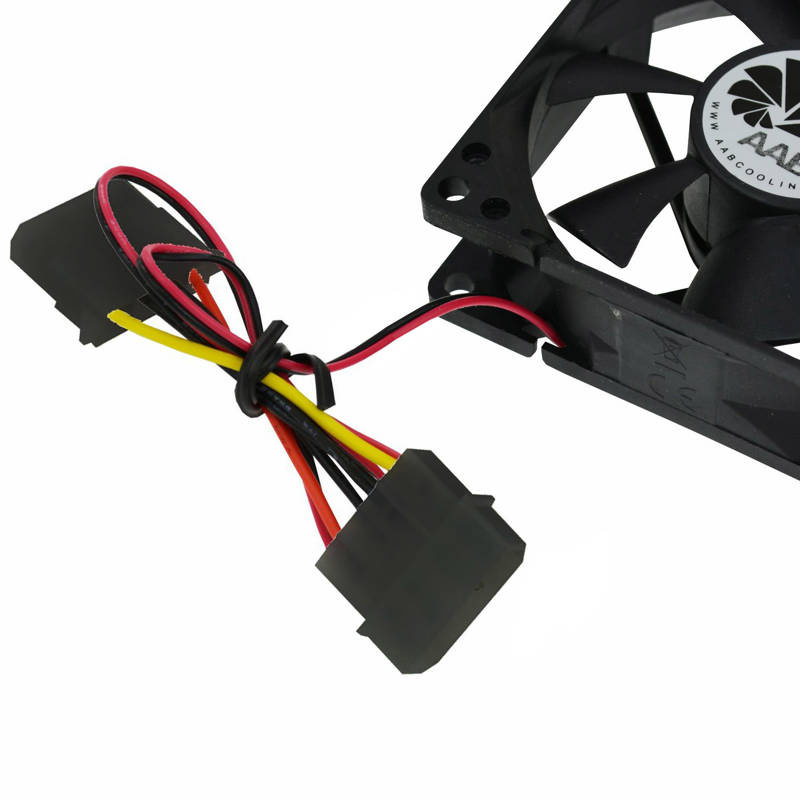

- disconnecting the 3 pin plug and connecting the fan directly to the power supply (no return possible) - The black cable is ground, the red is responsible for +, yellow is the transmission of the speed, no connection unables the BIOS from reading speed
Mounting the fan in the cover or power supply: The AABCOOLING Fan 8 is mounted on four screws, fixed to the standard fans in the power supply, allowing quick and easy replacement of the loud fan.
Installation methods in the power supply:
- Plug the fan plug into the 3Pin connector
- It is safer to solder the power cord to the power supply (voltage control from the power supply). Cut off the 3 pin plug and connect the fan directly to the power supply (no return possible).
- disconnecting the 3 pin plug and connecting the fan directly to the power supply (no return possible) - The black cable is ground, the red is responsible for +, yellow is the transmission of the speed, no connection unables the BIOS from reading speed
Included:
- 1 x AABCOOLING Fan 8
