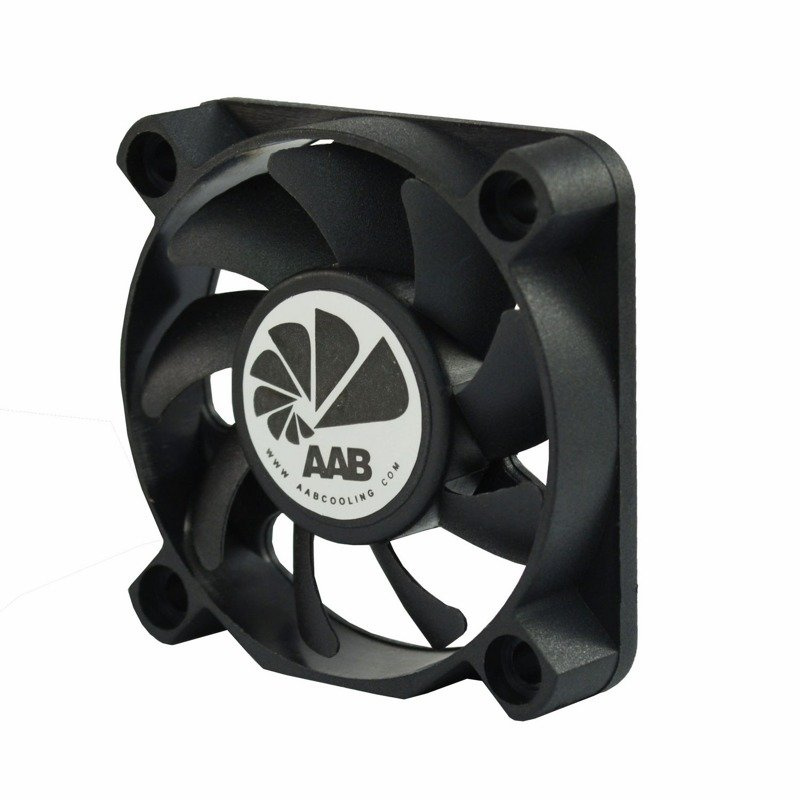

  • AABCOOLING Fan 5 is an economical fan from AAB. The fan runs at a constant 3000 ± 10% rpm. The noise level generated by the blades and the bearing is 21 dB.product warranty is only 3 months.
£1.41
incl. VAT / piece
Lowest price in 30 days before discount: / piece
Regular price: / piece
of
You can also buy using:
30 days for easy returns
Safe shopping
aab_cooling_fan_5_dsc_2748

AABCOOLING Fan 5 is an economical fan from AAB. The fan runs at a constant 3000 ± 10% rpm. The noise level generated by the blades and the bearing is 21 dB(A). Due to the installation of the cheapest and short-life plain bearings in this fan, this product warranty is only 3 months.

- Economy series

- Efficient

- 3 Pin Plug

- Sleeve Bearings

- Warranty 3 months




Typical applications:

Mounting the fan in the cover or power supply: The AAB Cooling Fan 4 is mounted on four screws, fixed to the standard fans in the power supply, allowing quick and easy replacement of the loud fan.

Installation methods in the power supply:

- Plug the fan plug into the 3Pin connector
- It is safer to solder the power cord to the power supply (voltage control from the power supply). Cut off the 3 pin plug and connect the fan directly to the power supply (no return possible).
- disconnecting the 3 pin plug and connecting the fan directly to the power supply (no return possible) - The black cable is ground, the red is responsible for +, yellow is the transmission of the speed, no connection unables the BIOS from reading speed

Included:
- 1 x AABCOOLING Fan 5

Entity responsible for this product in the EU
AAB Armanowski Spółka JawnaMore
ProducerAAB Armanowski Spółka JawnaAddress: Polskiej Organizacji Wojskowej 14Postal code: 98-300City: WieluńCountry: PolandPhone number: +48438433303E-mail: info@aabcooling.com
Responsible entityAAB Armanowski Spółka JawnaAddress: Polskiej Organizacji Wojskowej 14Postal code: 98-300City: WieluńCountry: PolandPhone number: +48438433303E-mail: info@aabcoling.com
Symbol
5901812999979
Producer code
5901812999979
Total dimensions
50 x 50 x 11,7 mm
Weight
21 g
Material
Plastic
Power Supply
6,5~12 VDC/ 0,04A~0,07A
Power Connector
3 Pin
Speed
3000 rpm ±10%
Airflow
6,42 CFM
Noise
21 dB(A)
Bearings
Slides
Thermal resistance
0,29 C/W
Mounting hole spacing
40 x 40 mm
Cable length:
30cm
